How to create a custom post-processing effect

The example on this page shows how to use a Full Screen Render Pass to create a grayscale custom post-processing effect.

Prerequisites

This example requires the following:

• A Unity project with the URP package installed.

• The Scriptable Render Pipeline Settings property refers to a URP asset (Project Settings > Graphics > Scriptable Render Pipeline Settings).

Create a Fullscreen Shader Graph

You must create a Fullscreen Shader Graph to create a custom post-processing effect.

1. Create a new Shader Graph in your Project. To do this right-click in the Project window and select Create > Shader Graph > URP > Fullscreen Shader Graph.
2. Add a URP Sample Buffer node. To do this right-click in the Shader Graph window, and select Create Node. Then locate and select URP Sample Buffer.
3. In the URP Sample Buffer node’s Source Buffer dropdown menu, select BlitSource.
4. Add a Vector 3 node.
5. Assign the Vector 3 node the following values:
   • X = 0.2126
   • Y = 0.7152
   • Z = 0.0722
6. Add a Dot Product node.

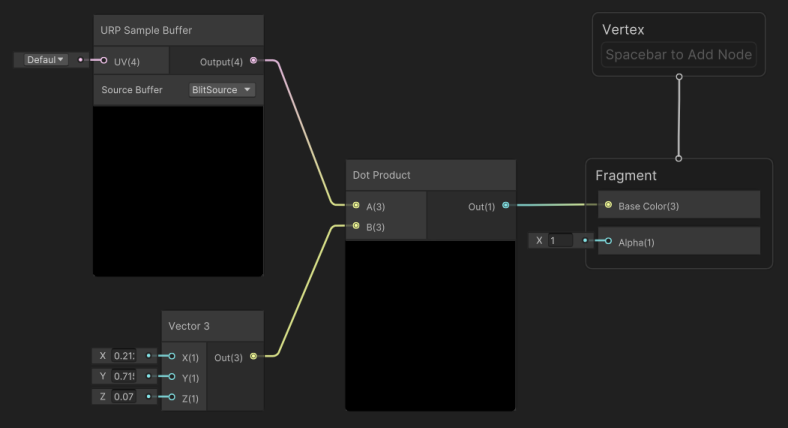

7. Connect the nodes as shown below.



   Node	Connection
   URP Sample Buffer	Output to Dot Product A
   Vector 3	Out to Dot Product B
   Dot Product	Out to Fragment Base Color

8. Save your Shader Graph.

9. Create a new Material in your Project. To do this right-click in the Project window and select Create > Material.

10. Apply the Shader Graph shader to the Material. To do this, open the Material in the Inspector and select Shader > Shader Graphs, then select the Shader Graph you created in the previous steps.

Use the Material in a Full Screen Pass Renderer Feature

Once you’ve created a compatible Shader Graph and Material, you can use the Material with a Full Screen Pass Renderer Feature to create a custom post-processing effect.

1. Select your project’s Universal Renderer.

   If you created your project using the Universal 3D template, you can find the Universal Renderers in the following project folder: Assets > Settings.

2. In the Inspector, click Add Renderer Feature and select Full Screen Pass Renderer Feature. For more information on adding Renderer Features refer to How to add a Renderer Feature to a Renderer.

3. Set the Pass Material field to the Material you created with the Fullscreen Shader Graph.

4. Set Injection Point to After Rendering Post Processing.

5. Set Requirements to Color.

You should now notice the effect in both Scene view and Game view.

Example scene with a grayscale custom post-processing effect.
